16S 2A Active Balancer NMC/LFP
Product Description

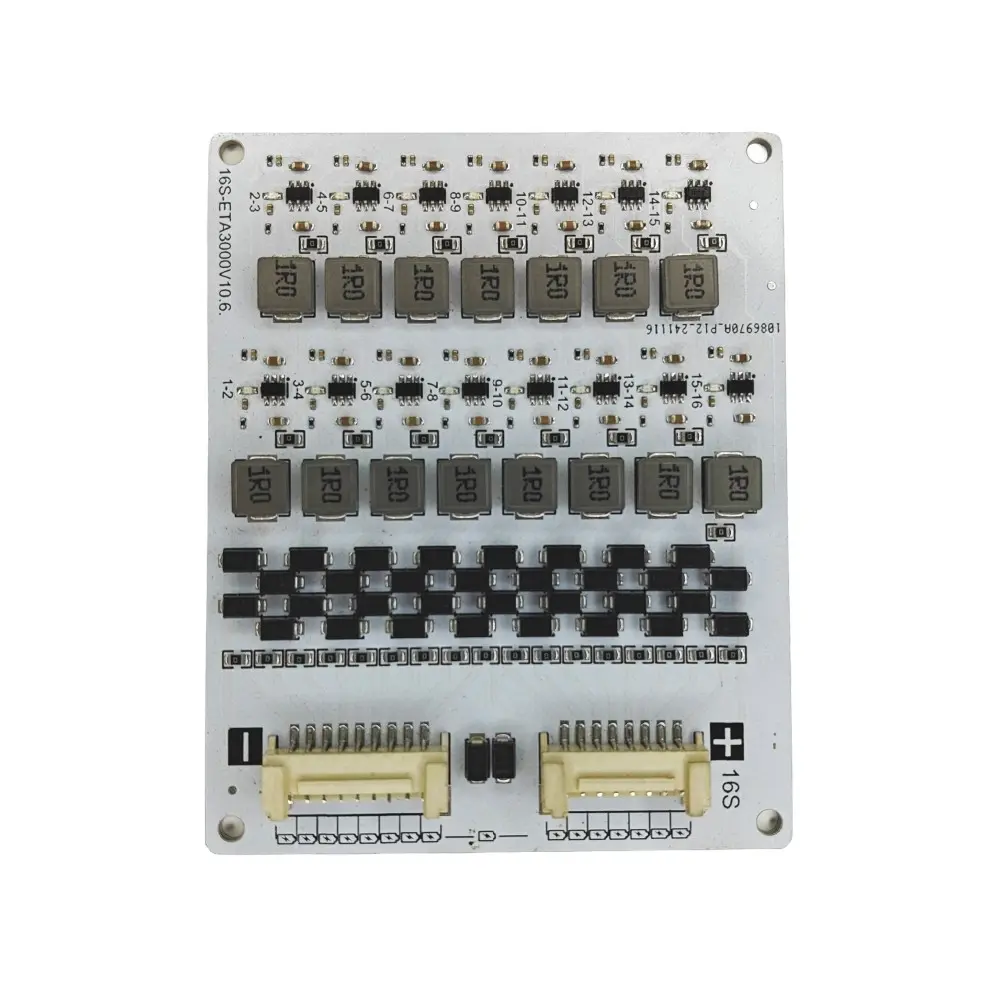

DG-16S 2A Inductive Active Balancer – 16S LFP/NCM Battery Pack Equalizer
The DG-16S 2A is a high-efficiency, self-powered inductive active balancer designed for 16S lithium iron phosphate (LiFePO₄) and NCM battery packs. This advanced equalizer rapidly detects and balances voltage differences between adjacent cells, using up to 2A balancing current for fast equalization and optimal battery pack health. No external power supply is required—the balancer operates by redistributing energy internally between cells. Ideal for large battery packs in solar storage, electric vehicles, e-bikes, and energy systems requiring superior longevity and safety.
| Parameter | Specification |
| Product Model | DG-16S 2A |
| Supported Series | 16S (16 series cells) |
| Applicable Battery Type | NCM / LiFePO₄ (LFP), Ternary Lithium |
| Cell Voltage Range | 3.0V – 4.2V (per cell) |
| Balance Method | Inductive energy transfer, automatic start when cell difference >0.1V |
| Balance Current | 0.5–0.7A (for 0.1V < difference < 0.2V), up to 2A (difference >0.2V) |
| Balance Accuracy | Typical: 30mV |
| Product Size | 8.9cm × 7.2cm |
| Product Weight | 42g |
| External Power Supply | Not required (self-powered) |
| LED Indicator | ON when balancing, OFF when idle |
| Quiescent Current | <10μA |
| Operating Temperature | -20 °C to +60 °C |
| Wiring | Connect directly to each cell tap |
| Applications | Solar ESS, EV/EBike packs, powerwall, high-capacity battery systems |
