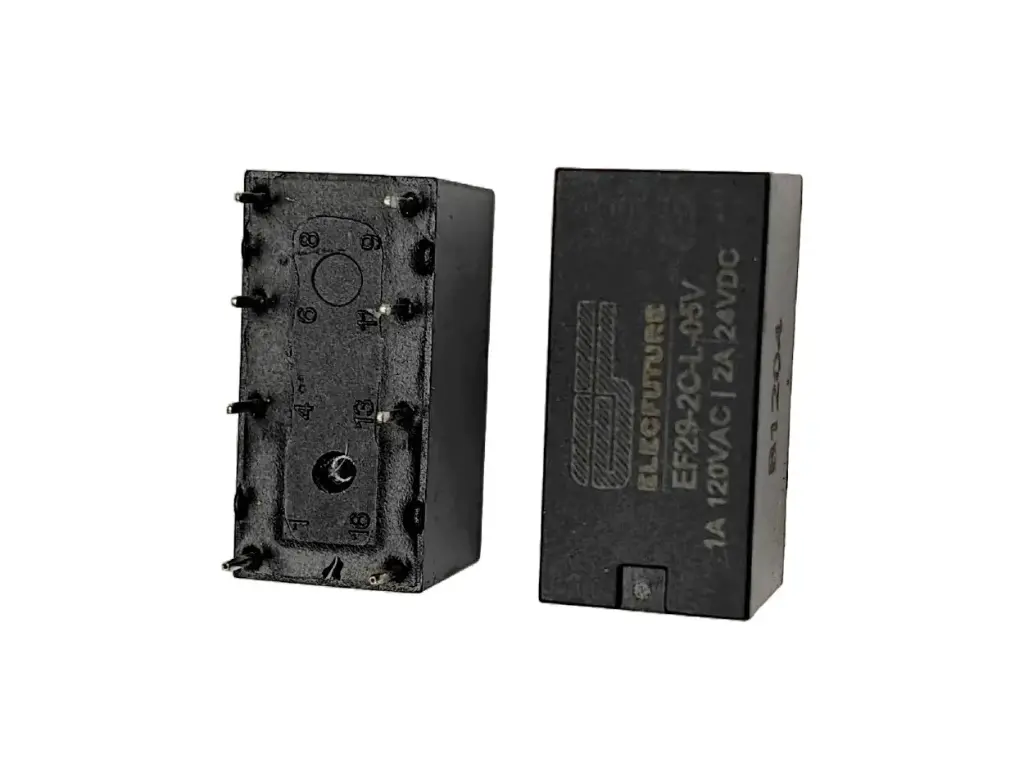

5V 2A DPDT Telecom Relay

https://www.etosmtechnology.in/web/image/product.template/40/image_1920?unique=f6b8cd8
Note: Product Images are shown for illustrative purposes only and may differ from actual product.

₹ 36.00 36.0 INR ₹ 36.00 Tax Included

₹ 36.00 Tax Included

Not Available For Sale

(₹ 36.00 / Units)

This combination does not exist.

Description

The 5V 2A DPDT (Double Pole Double Throw) Telecom Relay is a high-performance electromagnetic relay designed to provide reliable switching for telecom and communication equipment. Offering dual independent switching circuits, this relay is ideal for applications requiring the control of two separate devices or circuits with a single relay.

Specifications

  • Coil Voltage: 5V DC
  • Contact Configuration: DPDT (Double Pole Double Throw)
  • Contact Rating: 2A at 24V DC
  • Coil Resistance: 80Ω
  • Switching Voltage: 24V DC (max)
  • Switching Current: 2A (max)
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through-hole for easy integration into circuits
  • Pin Count: 8 pins (2x Common, 2x Normally Open, 2x Normally Closed, Coil, Ground)
