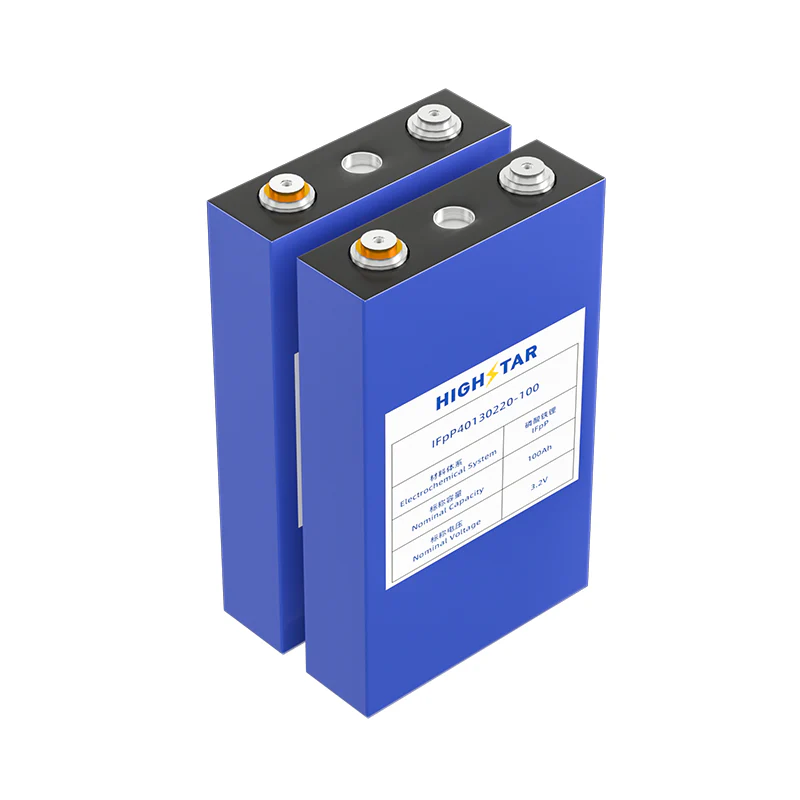

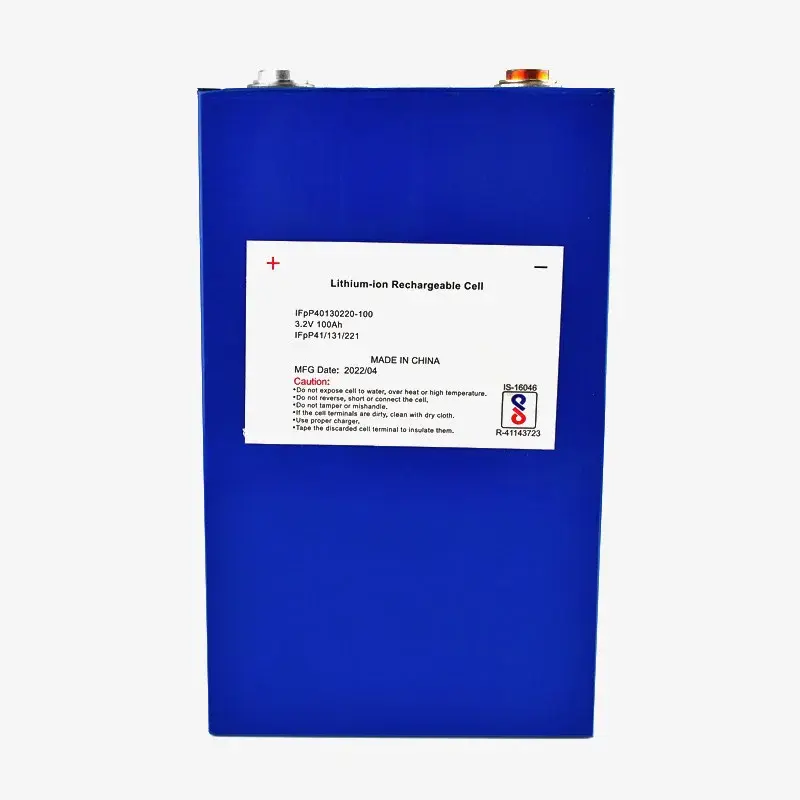

Highstar 3.2V 100Ah Prismatic LiFePO4 Battery

Specifications

1. Nominal Voltage: 3.2V
2. Capacity: 100Ah
3. Energy: 320Wh (Watt-hours)
4. Charge Voltage: 3.65V (maximum)
5. Cutoff Voltage (Discharge): 2.5V
6. Maximum Charge Current: 50A (standard) / 100A (max)
7. Maximum Discharge Current: 100A (continuous) / 200A (peak for a few seconds)
8. Internal Resistance: ≤ 0.3mΩ

Cycle Life:

​>4,000 Cycles at 80% Depth of Discharge (DoD).

Physical Specifications:

1. Cell Dimensions: Approx. 130mm x 40mm x 220mm
2. Weight: ~2.35kg per cell aprox
3. Terminal Type: M6 threaded terminal bolts (or as specified).

Thermal Specifications:

1. Operating Temperature:
   • Charge: 0°C to 45°C
   • Discharge: -20°C to 60°C
2. Storage Temperature: -20°C to 45°C

Features

1. High Safety: LiFePO4 chemistry is non-combustible and thermally stable.
2. Long Cycle Life: Over 4,000 cycles at 80% DoD, much longer compared to other lithium chemistries.
3. High Energy Density: Compact prismatic design for efficient energy storage.
4. Wide Applications: Suitable for off-grid solar systems, electric vehicles, backup power, and more.
5. Eco-Friendly: Non-toxic, with minimal environmental impact compared to lead-acid batteries.

Important Notes:

1. Always use a Battery Management System (BMS) to protect the battery from overcharge, over-discharge, and overcurrent.
2. Ensure proper handling and use in accordance with the manufacturer's guidelines.
3. Avoid exposing the battery to fire, moisture, or extreme conditions.

Package Includes:

​1 x Highstar 3.2V 100Ah Prismatic LiFePO4 Battery Cell
