Short Description

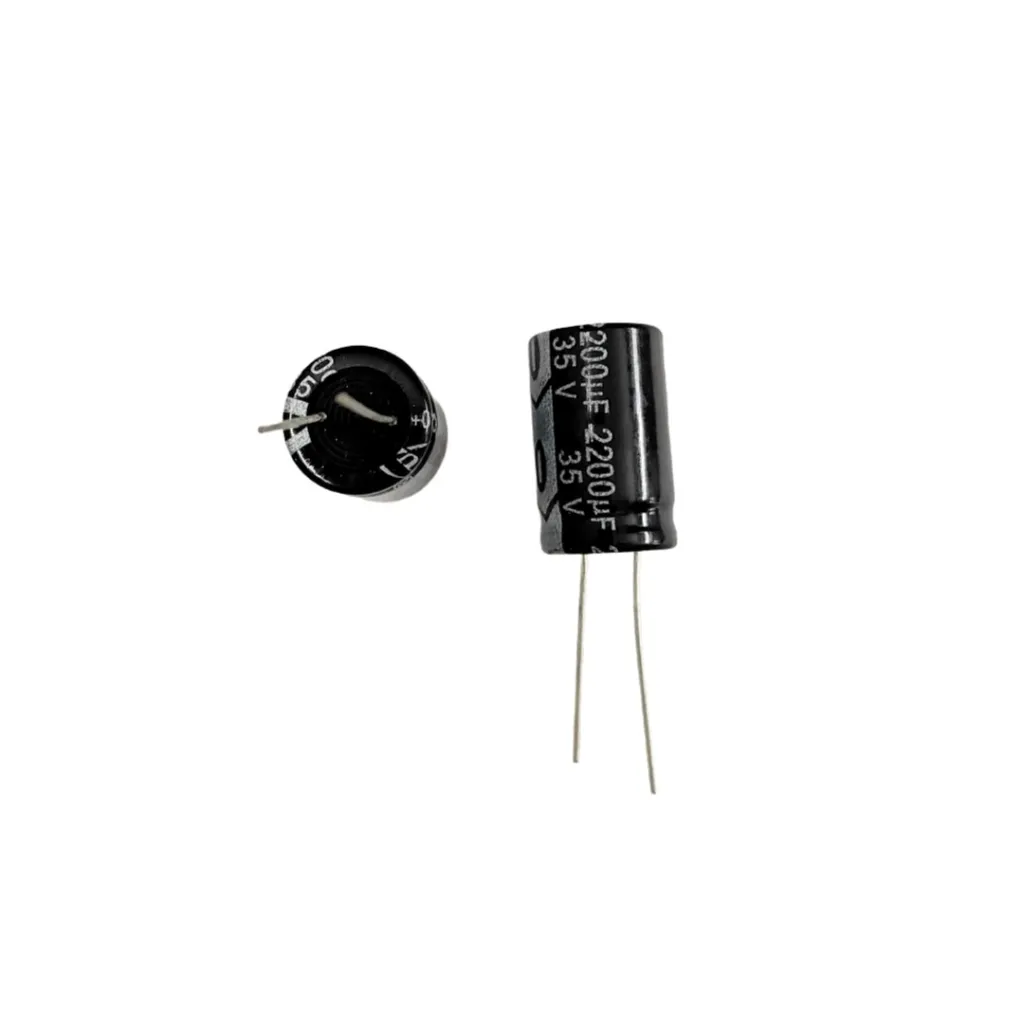

Reliable 2200µF 35V radial electrolytic capacitor with 3000 hours lifespan @ 105°C for SMPS output filtering, DC smoothing, inverter/UPS boards, and audio amplifier power rails. Compact 16mm Ø × 25mm height, 7.5mm lead pitch.
Full Product Description
This 2200µF 35V DC radial electrolytic capacitor is engineered for stable performance in power electronics where ripple and heat resistance matter. Rated for 105°C with a long 3000 hours lifespan, it’s an ideal choice for SMPS power supply filtering, DC ripple reduction, audio amplifier power rail smoothing, battery chargers, and inverter/UPS control boards.
With a compact body size of 16mm diameter × 25mm height and 7.5mm lead pitch, it fits cleanly on most standard through-hole PCBs—perfect for both repairs and new designs.
Best for:
SMPS output capacitor / ripple filtering
DC smoothing and noise suppression
Audio amplifier power line filtering (reduces hum)
UPS / inverter driver & control PCB repairs
Industrial and DIY electronics assemblies
Key Features
2200µF capacitance for strong smoothing and hold-up
35V DC rating for stable use in many 12V/24V circuits (within design limits)
105°C high-temperature rating for power electronics
Long life: 3000 hours @ 105°C
Radial through-hole mounting for easy PCB installation
Compact size: 16mm Diameter × 25mm height
7.5mm pitch for standard PCB footprints
Specifications (Updated)
Capacitance: 2200µF
Rated Voltage: 35V DC
Tolerance: ±20%
Temperature Rating: 105°C
Lifespan / Endurance: 3000 Hours @ 105°C
Mounting Type: Radial Through-Hole
Body Size: ~25mm (H) × 16mm (Ø)
Lead Pitch: 7.5mm
Polarity: Polarized (Follow + / – marking)
