10K Ohm 10W Wire Wound Resistor - Reckon
Product Description

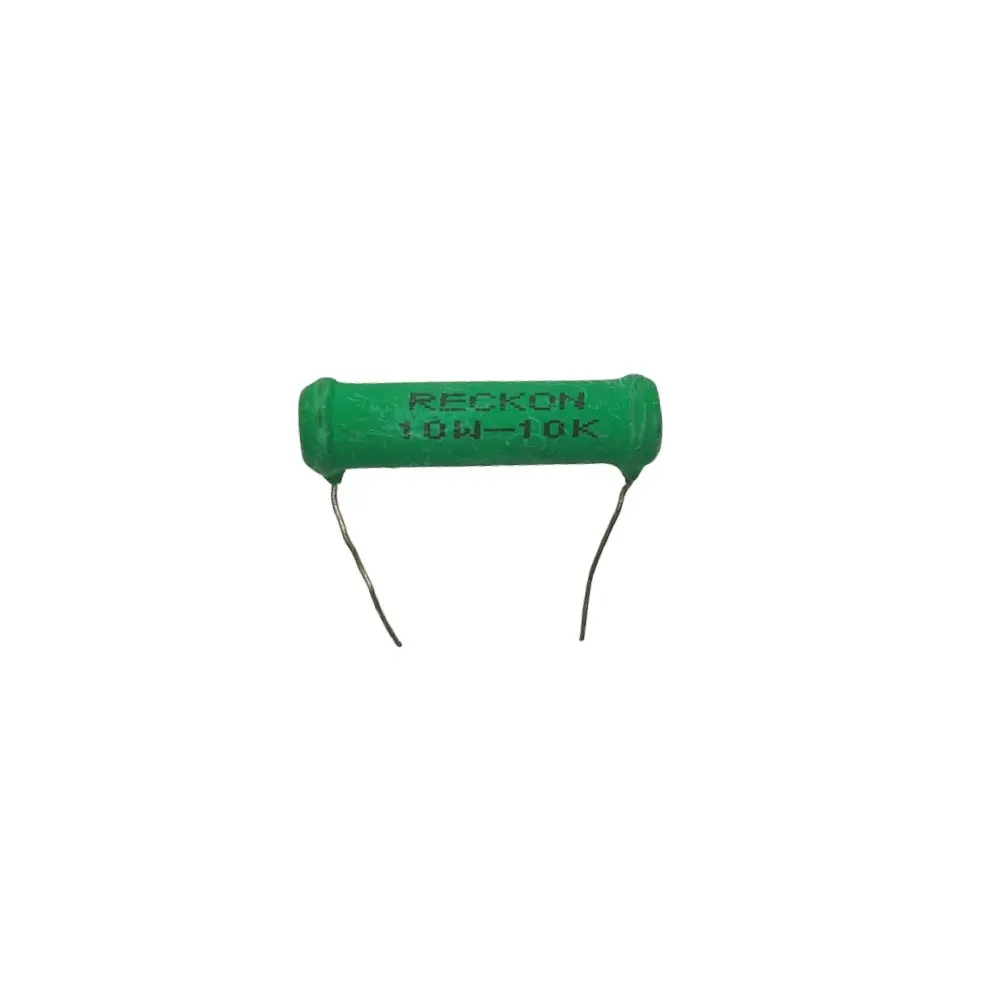

10K Ohm 10W Wire Wound Resistor – Reckon
This premium quality 10K Ohm 10W wire wound resistor by Reckon is ideal for power electronics, industrial controls, and general-purpose circuits where precision and durability are essential. Constructed with a high-temperature ceramic core and non-flammable coating, it ensures excellent heat dissipation and stable performance under high loads. The rugged, flameproof design makes it perfect for both prototyping and production environments.
Technical Specifications
| Parameter | Specification |
| Resistance Value | 10K Ohms (10,000 Ω) |
| Rated Power | 10W (watts) |
| Type | Wire Wound |
| Tolerance | ±5% (typical) |
| Body Material | High-quality ceramic core |
| Coating | Flameproof, high-temp green |
| Leads | Axial, tinned copper |
| Operating Temp. Range | -55°C to +200°C |
| Brand | Reckon |
| Dimensions | Standard (approx. 53mm x 13mm), may vary slightly |
| Applications | Power supplies, motor drives, snubber, bleeder circuits, inrush current limiter, load testing, discharge, etc. |
