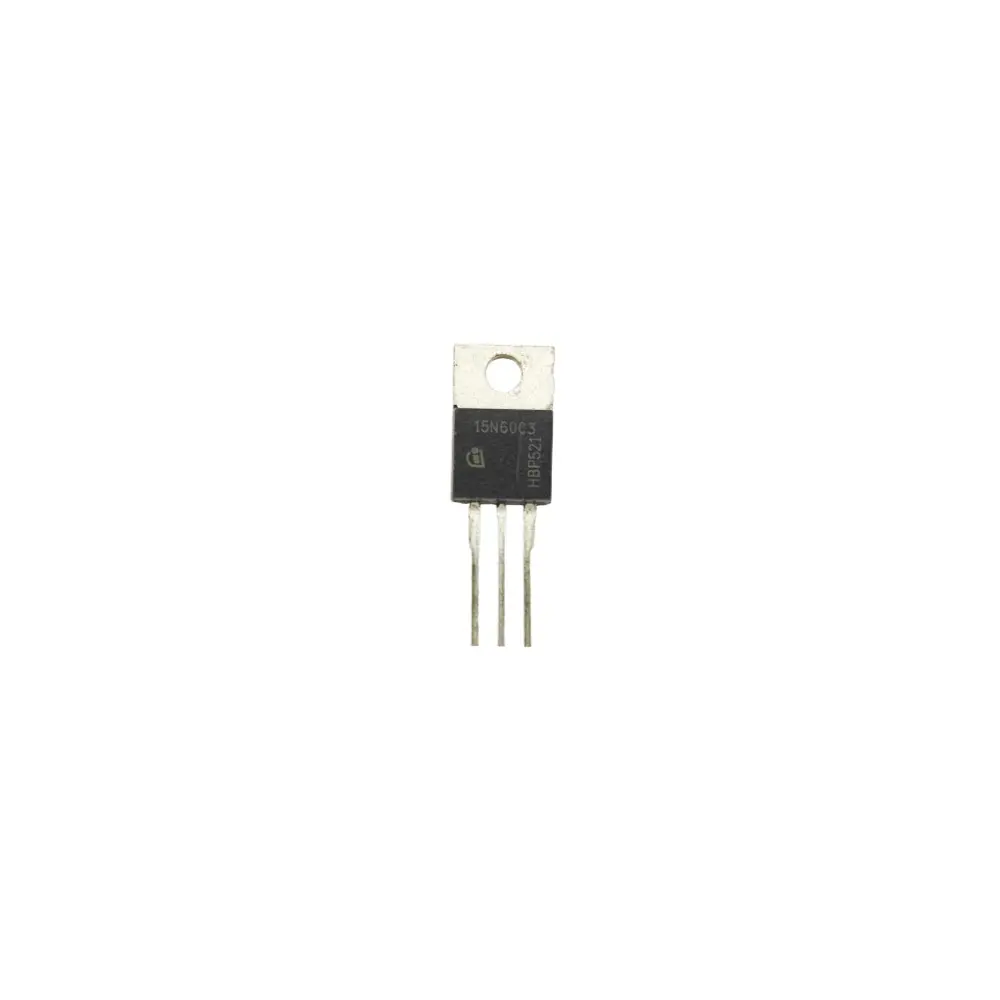

15N60C3 – 600 V 15 A N‑Channel MOSFET | TO‑220
Product Description
The Infineon 15N60C3 is a high‑voltage N‑channel CoolMOS™ C3 MOSFET designed for demanding power electronics applications such as SMPS, inverters, motor drives and renewable energy systems. With a 600 V (drain‑source breakdown) rating, 15 A continuous current capability and ultra low gate charge, this MOSFET delivers excellent efficiency, fast switching performance and high reliability even under challenging conditions.
Technical Specifications
| Parameter | Specification |
| Manufacturer | Infineon Technologies |
| Model / Type | 15N60C3 (CoolMOS™ C3, N‑Channel MOSFET) |
| Drain‑Source Breakdown Voltage (V₅ₙₓ) | ≈ 600 V |
| Continuous Drain Current (I_D) | ~ 15 A |
| On‑State Resistance (R_DS(on)) | ~ 0.28 Ω (at V_GS = 10 V) |
| Total Gate Charge (Q_g) | ~ 63 nC |
| Package | TO‑220 |
| Operating Temperature | Min: ‑55 °C, Max: +150 °C |
| Power Dissipation (P_D) | ~ 34 W |
| Technology | CoolMOS™ C3 (high voltage MOSFET optimized for fast switching) |
| Typical Applications | SMPS, LED drivers, solar inverters, motor drives, consumer & industrial power electronics |
Datasheet
