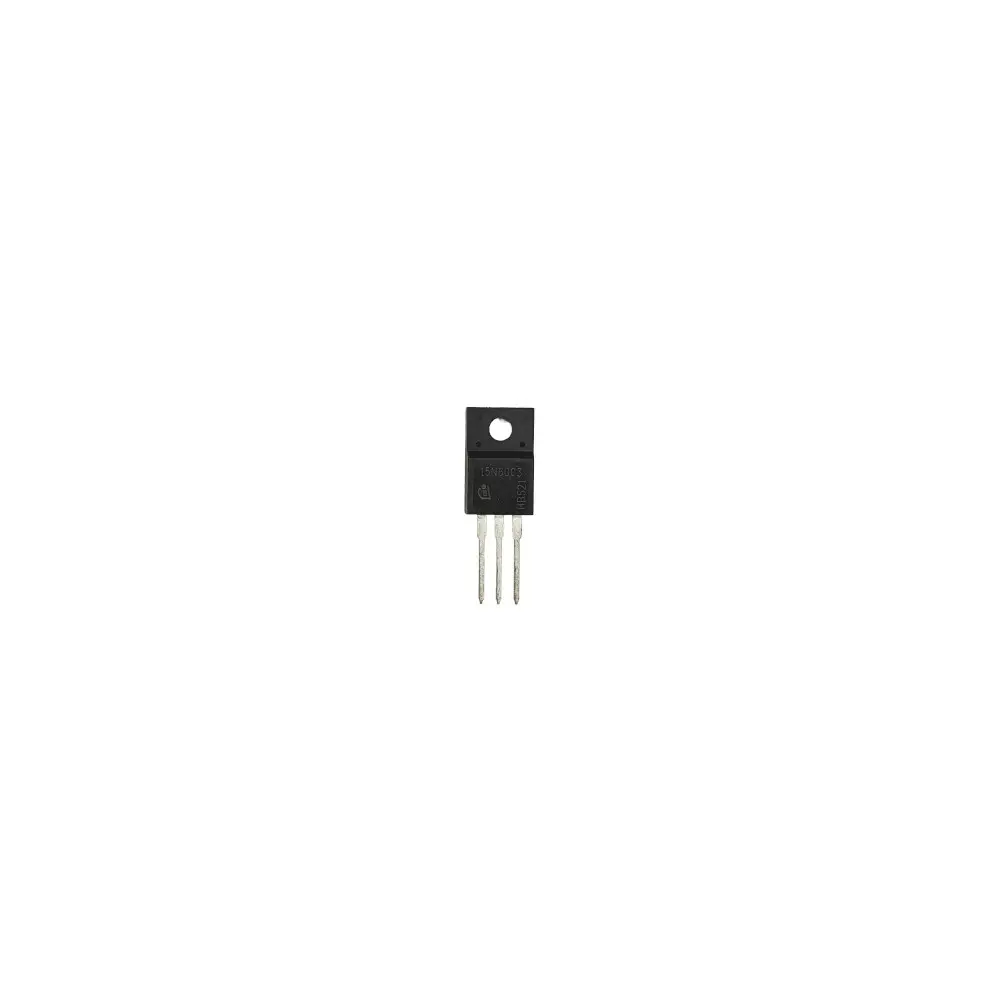

15N60C3 600V 15A N-Channel MOSFET TO-220F
Product Description
The 15N60C3 is a high-voltage, N-channel MOSFET in a TO-220F fully insulated package, delivering 600V drain-source capability and up to 15A current rating. Its insulated (plastic) TO-220F body allows direct mounting to heatsinks with no extra mica or pad—ideal for dense power supply and inverter designs where electrical isolation is essential.
Featuring fast switching performance and low on-resistance, the 15N60C3 is optimized for switch-mode power supplies (SMPS), high-frequency inverters, LED drivers, and other demanding circuits. This robust device offers reduced EMI, enhanced safety, and reliable operation in both consumer and industrial environments.
Technical Specifications
| Parameter | Specification |
| Part Number | 15N60C3 |
| Package Type | TO-220F (insulated, full-pack) |
| Polarity | N-channel |
| Drain-Source Voltage (Vds) | 600V |
| Continuous Drain Current (Id) | 15A (@25°C, limited by heatsink) |
| On-State Resistance (Rds(on)) | ~0.28Ω (typical) |
| Gate Threshold Voltage (Vgs(th)) | 2.0 – 4.0V |
| Total Gate Charge (Qg) | ~63nC |
| Max Power Dissipation | ~34W (@Tc = 25°C) |
| Maximum Junction Temp | 150°C |
| Mounting | Through-hole, fully insulated |
| Isolation | Yes (no exposed metal tab) |
