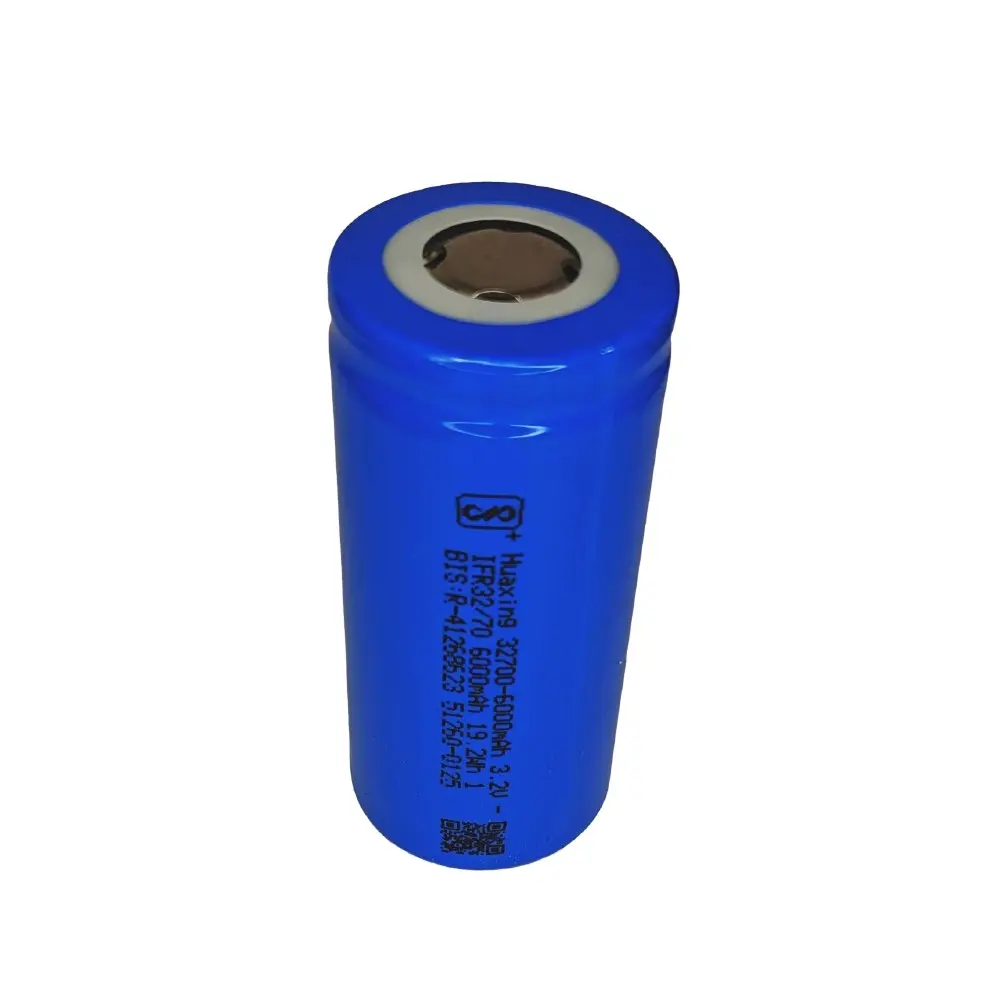

32700 3.2V 6000MAH LiFePO4 Battery

Parameter	Specification
Cell Model	32700-3.2V6.0Ah
Chemistry	LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage	3.2V
Nominal Capacity	6.0Ah (at 1C discharge)
AC Impedance	≤ 8 mΩ (at 1000 Hz)
End-of-Charge Voltage	3.65V (CC/CV mode)
End-of-Discharge Voltage	2.0V
Charging Method	≤1C (6A) CC/CV, standard charge
Max Continuous Discharge Current	18A
Max Pulse Discharge Current	60A (for 3 seconds)
Cycle Life (1C, 100% DOD)	≥ 2000 cycles (capacity retention ≥ 80%)

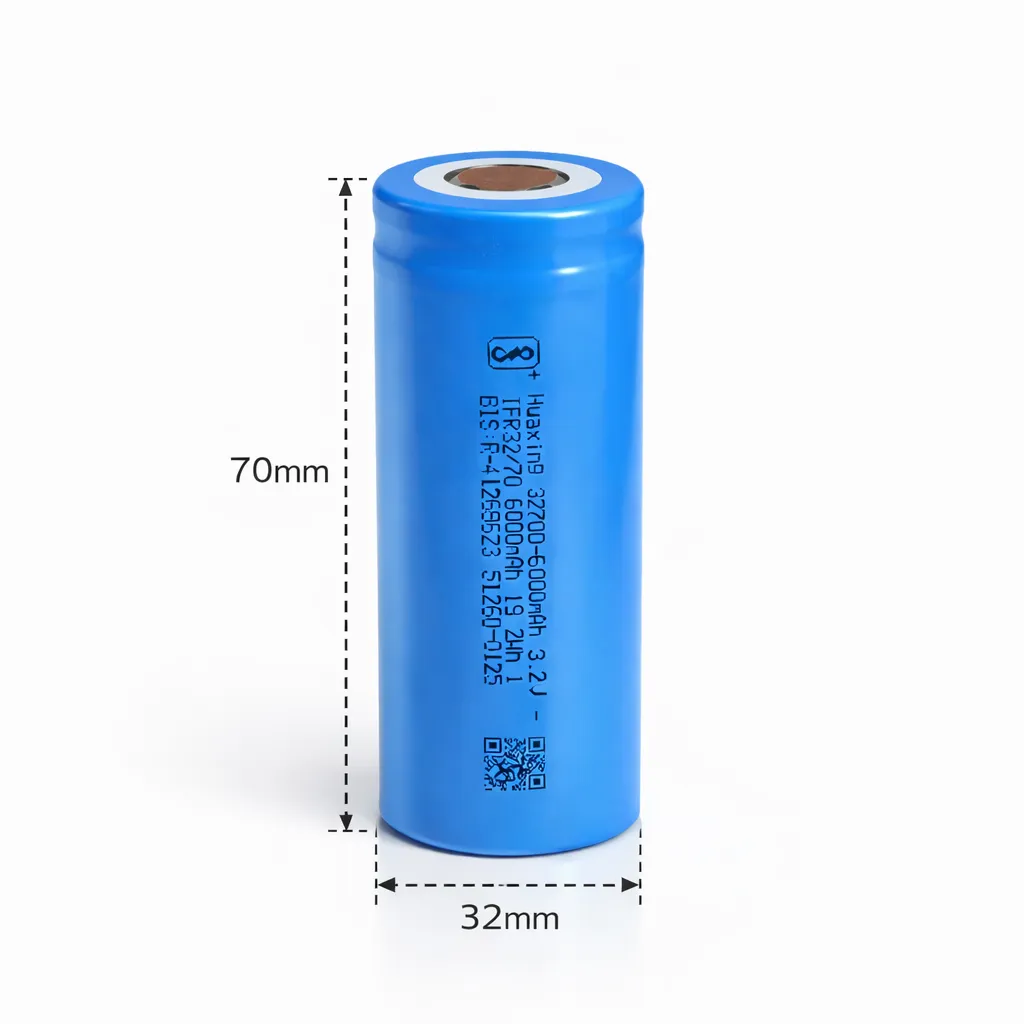

Cell Diameter	32.2 ± 0.3 mm (Max 32.5 mm)
Cell Height	70.5 +0.4/-0.3 mm (Max 70.9 mm)
Cell Weight	140 ± 5 g
Charging Temperature Range	0 ~ 60 °C
Discharging Temperature Range	-20 ~ 60 °C
Storage Temperature Range	-20 ~ 45 °C
Self-Discharge	Low
Case Material	Nickel-plated steel
Safety Features	Double safety protection, high shock & vibration resistance, no explosion/fire in short circuit/overcharge/overdischarge/crush/needle/thermal tests
Recommended Applications	Electric vehicles (2W/3W/4W low-speed), UPS, energy storage

This combination does not exist.

Battery LFP

Key Features

High capacity and excellent cycle life

Low internal resistance, supports high current discharge

Robust, pressure-resistant steel case

Excellent temperature performance

Double safety protection

Low self-discharge rate

For full safety guidelines and assembly precautions, consult the official datasheet.
