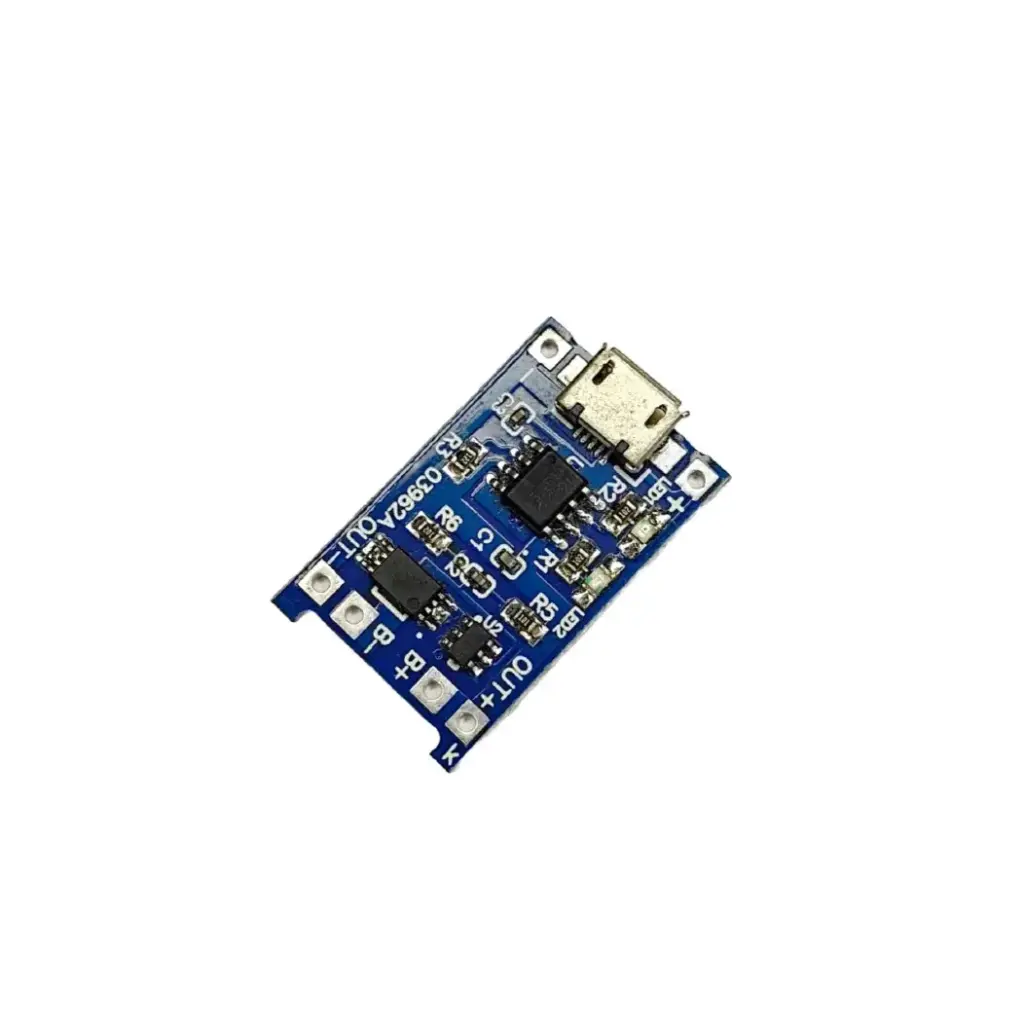

TP4056 1A Li-Ion Battery Charger with Protection

https://www.etosmtechnology.in/web/image/product.template/7/image_1920?unique=8499c65

₹ 15.00 15.0 INR ₹ 15.00 Tax Included

₹ 15.00 Tax Included

Not Available For Sale

(₹ 15.00 / Units)

This combination does not exist.

Specifications


The TP4056 1A Li-Ion Battery Charger with Protection is a compact and efficient module designed for charging single-cell lithium-ion or lithium-polymer batteries. Equipped with overcharge, over-discharge, and overcurrent protection, this charger ensures reliable and safe charging for your batteries.


Input Voltage (Vin): 4.5V to 5.5V (via micro-USB or solder pads)

Output Voltage (Vout): 4.2V (regulated charging voltage)

Maximum Charge Current (Icharge): Adjustable up to 1A

Battery Type: Single-cell 3.7V lithium-ion or lithium-polymer batteries

​

Characteristics


  1. Charge Current:
    • Programmable using an onboard resistor.
    • Default current: 1A (can be adjusted by replacing the Rprog resistor).
  2. Charging Algorithm:
    • CC/CV Mode: Constant Current (CC) and Constant Voltage (CV) for optimal charging.
    • Preconditioning for deeply discharged batteries.
  3. Protections:
    • Overcharge Protection:
      • Stops charging when the voltage reaches 4.2V ± 1%.
    • Over-Discharge Protection:
      • Disconnects the battery below ~2.4V to prevent damage.
    • Overcurrent Protection:
      • Typically rated to handle currents up to ~3A.
    • Short-Circuit Protection:
      • Shuts off output in case of a short circuit to protect the battery.
  4. Thermal Regulation:
    • Built-in thermal protection for safe operation under high load.

Pin/Connector Description:

  1. Micro-USB Port: Standard input for charging through a USB adapter.
  2. IN+ and IN-: Alternate solder pads for external power input (4.5V to 5.5V).
  3. BAT+ and BAT-: Connect to the battery.
  4. OUT+ and OUT-: Output terminals for powering external circuits directly from the module.

LED Indicators:

  1. Red LED (Charging): Lights up during charging.
  2. Blue LED (Full): Lights up when charging is complete.

Physical Characteristics:

  • Board Dimensions: ~25mm x 19mm
  • Mounting Holes: For easy integration into projects.

Applications:

  • Power banks
  • DIY battery-powered devices
  • Wearable electronics
  • IoT devices
