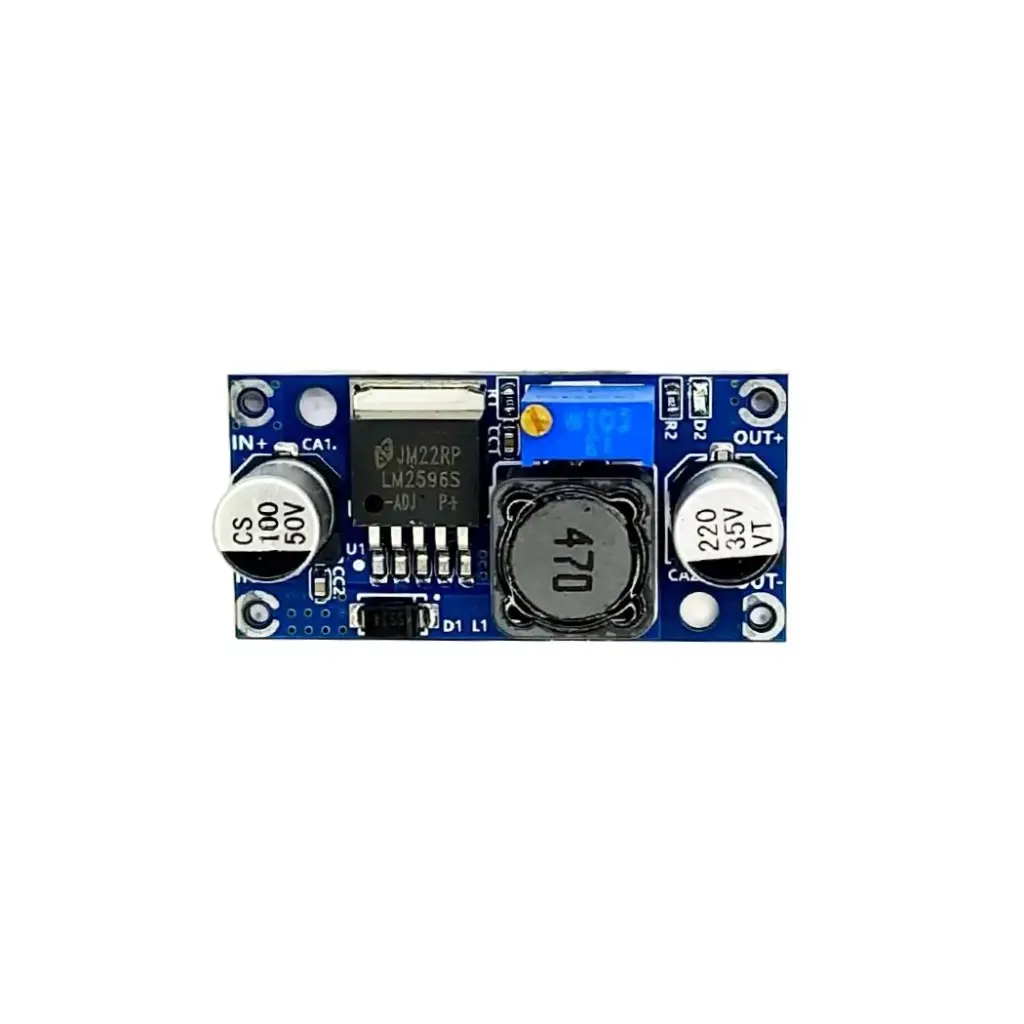

LM2596 3A DC-to-DC Step-Down Adjustable Voltage Regulator Module

https://www.etosmtechnology.in/web/image/product.template/16/image_1920?unique=b198b83

₹ 60.00 60.0 INR ₹ 60.00 Tax Included

₹ 60.00 Tax Included

Not Available For Sale

(₹ 60.00 / Units)

This combination does not exist.

Datasheet

Product Overview


  The LM2596 3A DC to DC Step Down Adjustable Voltage Regulator module is a high-quality, compact, and efficient power supply module designed to convert a higher input voltage to a lower, stable output voltage. It features a wide adjustable output range of 1.25V to 37V, making it ideal for various electronic projects and DIY applications.

Features:

  • Input Voltage Range: 4.0V to 40V DC
  • Output Voltage: Adjustable from 1.25V to 37V DC
  • Output Current: Up to 3A (with proper heat dissipation)
  • High Efficiency: Up to 92% efficiency, ensuring minimal power loss and longer battery life
  • Stable Output: Low ripple and noise for clean power delivery
  • Compact Design: Small and lightweight, suitable for space-constrained applications
  • Overcurrent and Overheat Protection: Built-in safety features to protect the module and your devices
  • Easy to Use: Potentiometer for adjusting output voltage easily
  • Applications: Ideal for powering electronics, Arduino, Raspberry Pi, DIY projects, robotic systems, and more

Specifications


  • Input Voltage: 4.0V – 40V DC
  • Output Voltage: 1.25V – 37V DC (adjustable)
  • Output Current: 3A (max)
  • Efficiency: 92% (max)
  • Switching Frequency: 150KHz
  • Size: 43mm x 21mm x 14mm

Applications:

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi)
  • Battery-powered projects
  • LED strips and lighting systems
  • Robotics and automation systems
  • DIY power supply projects

Note: For best performance, ensure proper heat dissipation if using the module at high current levels.

Package Includes:

  • 1 x LM2596 3A DC-to-DC Step-Down Adjustable Voltage Regulator Module
