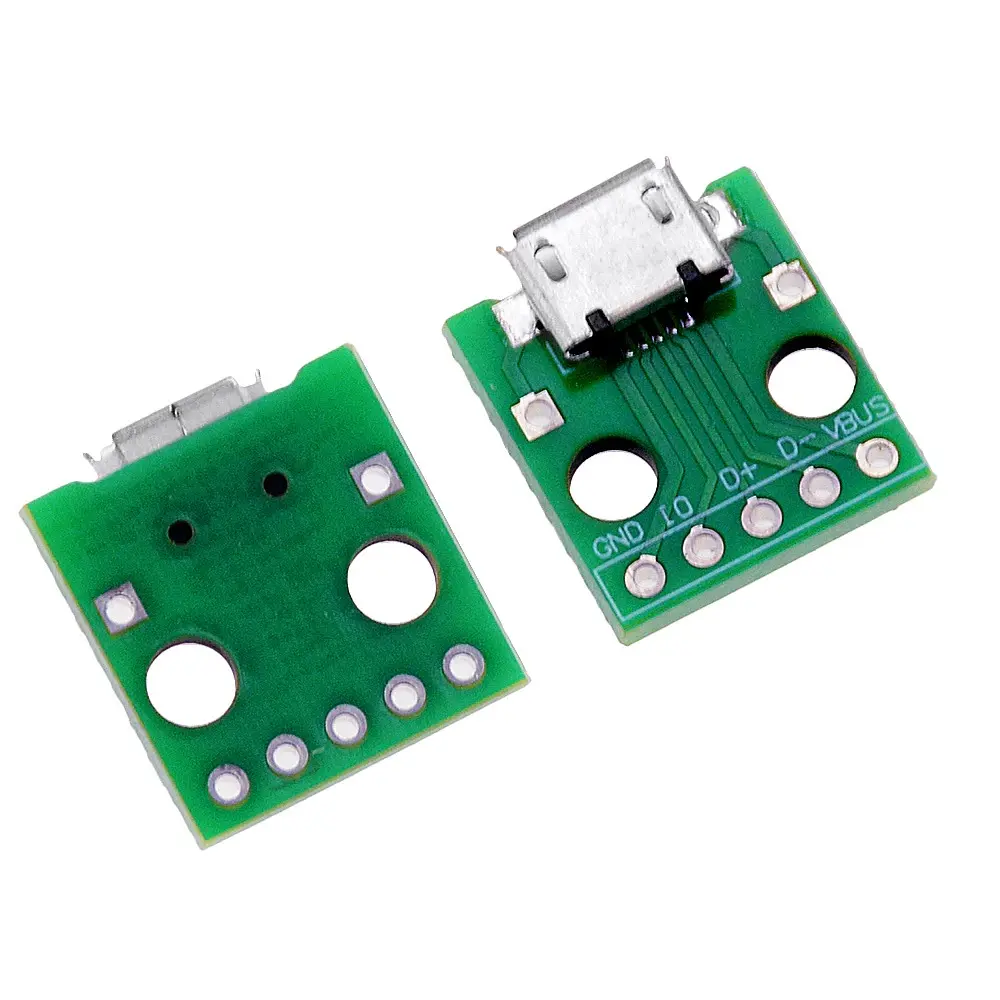

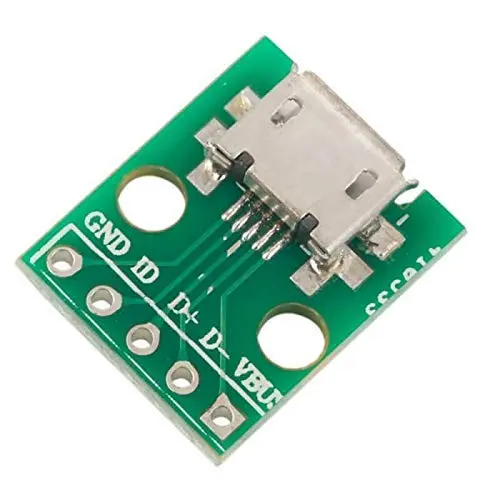

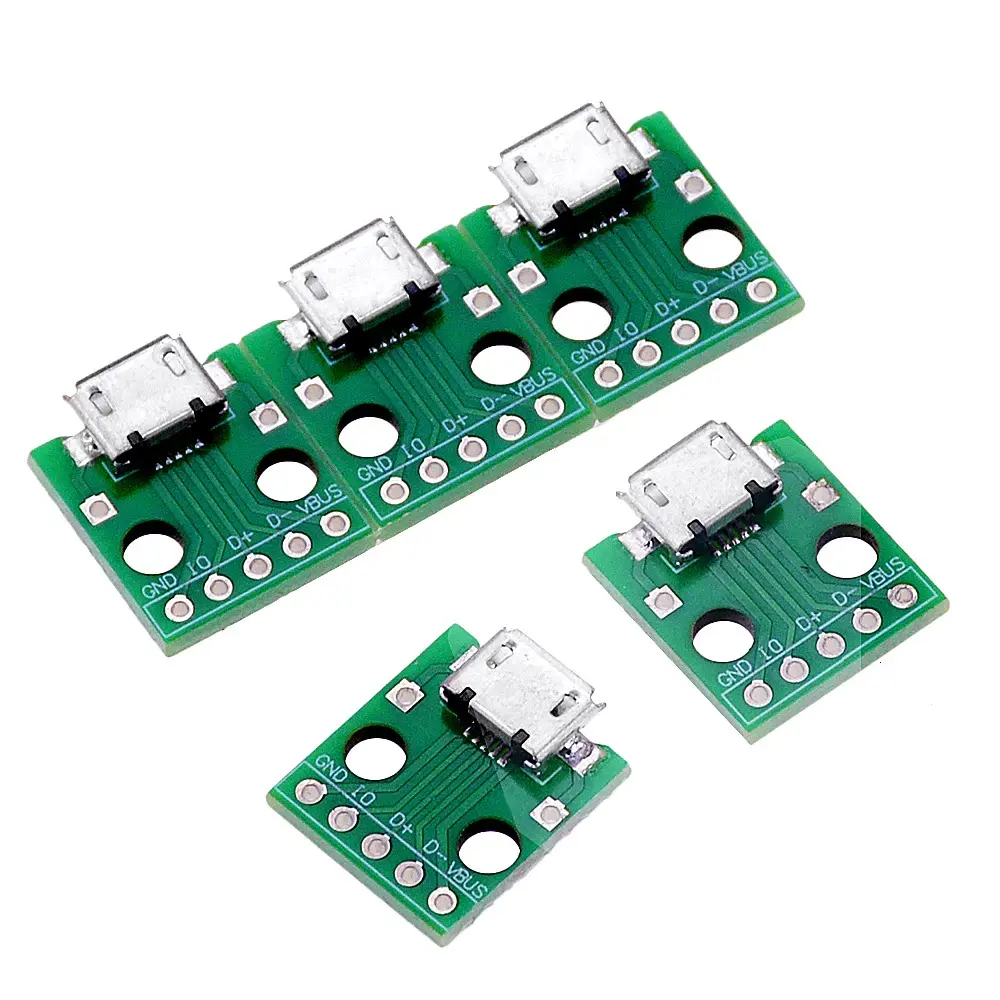

Micro USB B Type Breakout Board Module – 5-Pin DIP Adapter

Features

​Micro USB B Female Connector: Compatible with standard micro USB cables for power and data.

​5-Pin Breakout Interface: Includes GND, ID, D+, D-, and VBUS pins for easy integration.

​Easy Prototyping: Designed to be used with breadboards or custom PCBs.

​Compact Design: Small footprint for seamless integration into projects.

​Durable Build: High-quality PCB with soldered joints for long-term reliability.

Specifications

1. Connector Type: Micro USB B Female Connector
2. Breakout Pins:
   • VBUS: Power input/output (5V)
   • GND: Ground
   • D+: Data Positive
   • D-: Data Negative
   • ID: Used for OTG (On-the-Go) functionality
3. PCB Material: High-quality FR4
4. Operating Voltage: Standard USB 5V
5. Pin Pitch: Compatible with standard 2.54mm headers

Applications:

1. USB power supply for microcontroller projects.
2. Prototyping USB data communication circuits.
3. Charger connections for mobile devices or IoT projects.
4. Integrating USB OTG functionality into designs.
5. Educational projects for understanding USB interfacing.

Package Includes:

• 1 x Micro USB B Type Breakout Board Module
